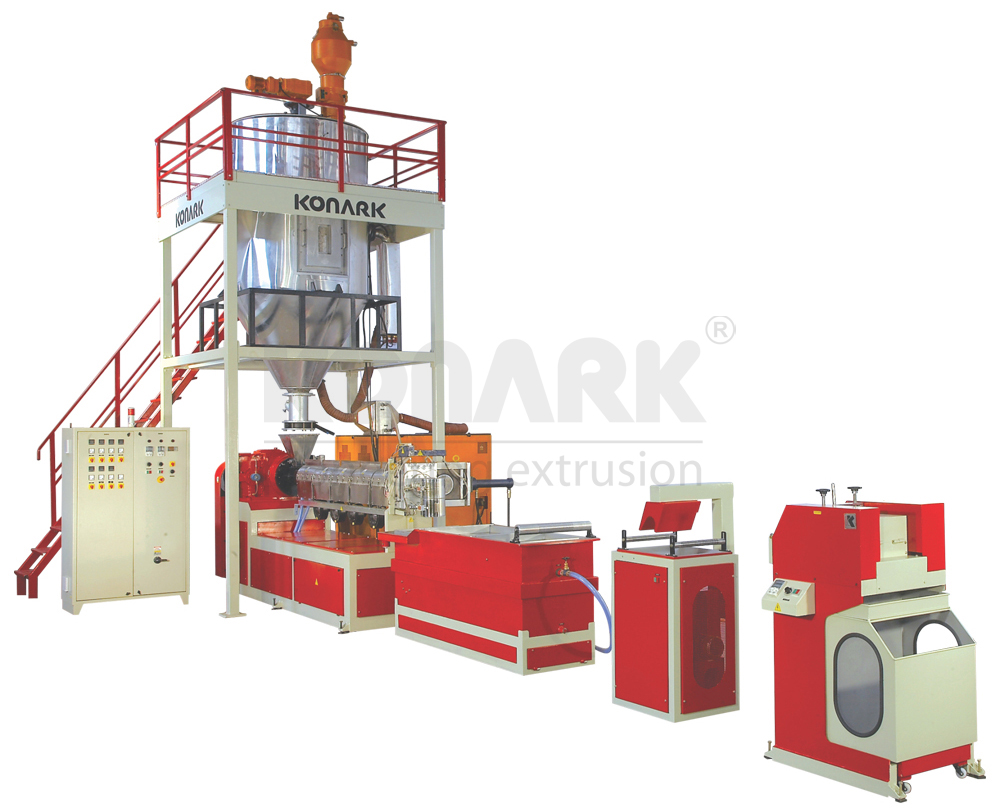

Strand Palletizer Recycling Line

  • Output Capacity : 50 Kg/Hr to 250 Kg/Hr
  • Extrusion line suitable for different material like PP, HM, HDPE, LDPE, LLDPE, HIPS & PET
  • Output range starting from 50 Kgs/Hr to upto 250 Kgs/hr
  • Smooth Feed type extruder design suitable for different foam of waste
  • Nitrided screw and barrels made out of special alloy steel for longer life
  • Helical gear box with inbuilt thrust bearing
  • Hydraulically operated filter changer
  • Palletizer unit with AC invertor drive
  • High density band heaters
  • SSR based all heating zones
  • Single point synchronization of whole line with AC motors and AC invertor drives
  • Melt pressure transducer

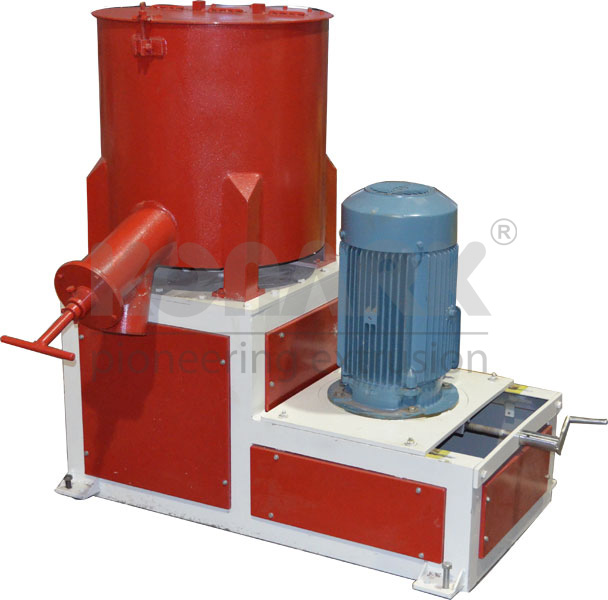

  • Agglomerator

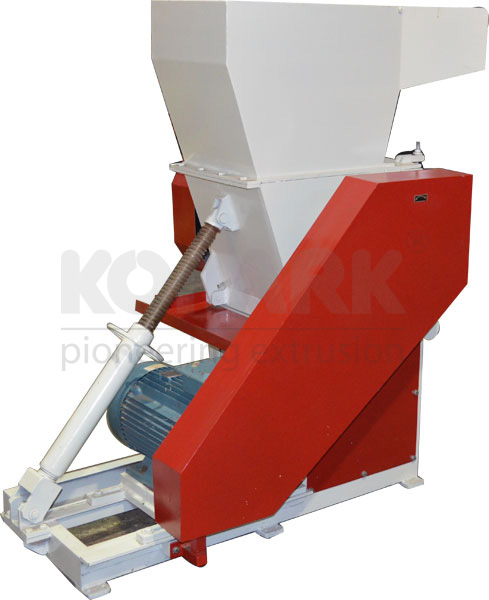

  • Waste Grinder
  • Simple Mixer
Model KRP/75 KRP/90 KRP/100 KRP/110 KRP/120 KPTRP/75 KPTRP/100
Material To Be Processed PP, HM, HDPE, LDPE, LLDPE PP, HM, HDPE, LDPE, LLDPE PP, HM, HDPE, LDPE, LLDPE PP, HM, HDPE, LDPE, LLDPE PP, HM, HDPE, LDPE, LLDPE PET Flakes PET Flakes
Screw Dia 75 mm 90 mm 100 mm 110 mm 120 mm 75 mm 100 mm
Barrel Feed Type Smooth Feed Smooth Feed Smooth Feed Smooth Feed Smooth Feed Smooth Feed Smooth Feed
Maximum Output 75 Kg/Hr 100 Kg/Hr 120 Kg/Hr 160 Kg/Hr 225 Kg/Hr 100 Kg/Hr 200 Kg/hr
Machine Connected Load 30 KW (40 HP) 43 KW (57 HP) 45 KW (60 HP) 52 KW (69 HP) 61 KW (81 HP) 100 KW (133 HP) 172 KW (229 HP)
Dimensions
( L x W x H ) Apprx		 30 x 4 x 7 Feet 30 x 4 x 8 Feet 30 x 4 x 8 Feet 35 x 5 x 8 Feet 35 x 5 x 8 Feet 30 x 10 x 20 Feet 35 x 12 x 22 Feet

*Customized Mother Baby Type Recycling Lines are also available as per customer requirement.

*All above specifications are just for an idea and subject to change arising out of continuous product change and improvement.
