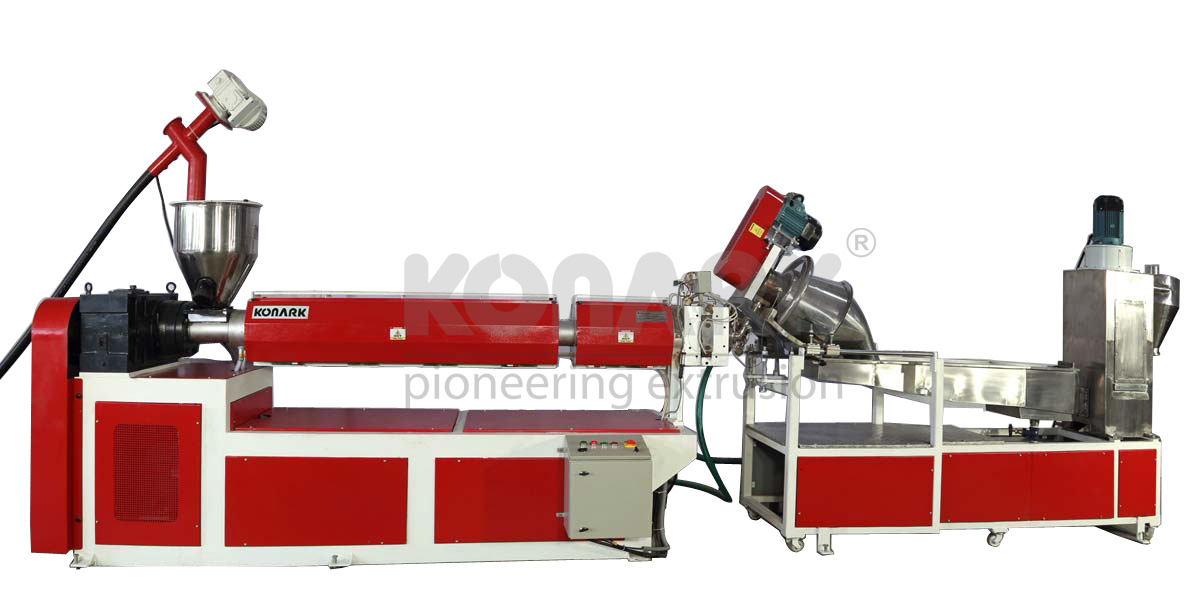

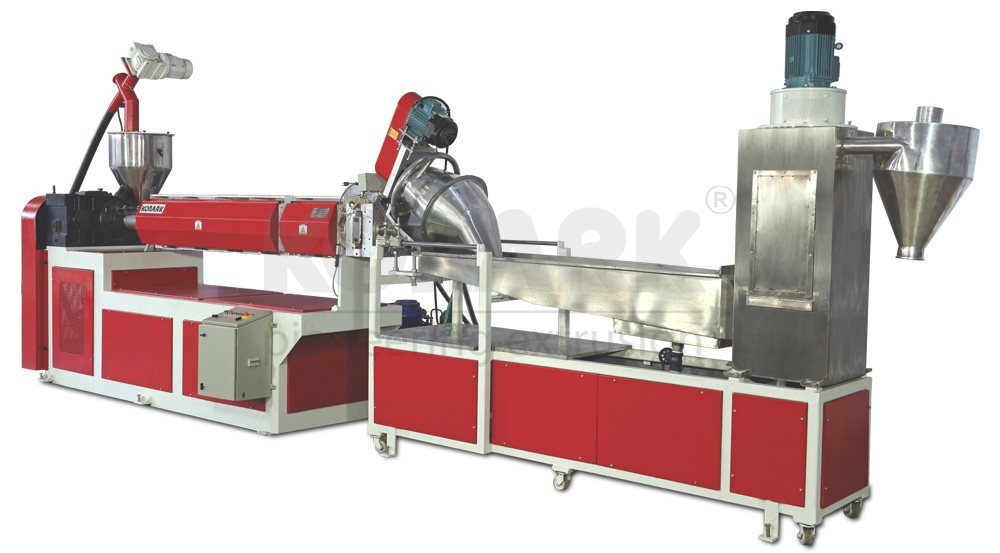

Water Ring Die Face Cutter Recycling Line
- Output Capacity : 100 Kg/Hr to 300 Kg/Hr
- Extrusion line suitable for different material like HM, HDPE, LDPE, LLDPE & HIPS
- Output range starting from 100 Kgs/Hr to upto 300 Kgs/hr
- Smooth Feed type extruder design suitable for different foam of waste
- Vented or Non vented extruder design for different material suitability
- Nitrided screw and barrels made out of special alloy steel for longer life
- Helical gear box with inbuilt thrust bearing
- Hydraulically operated filter changer
- Melt pressure indication in synchronization with extruder AC invertor drive

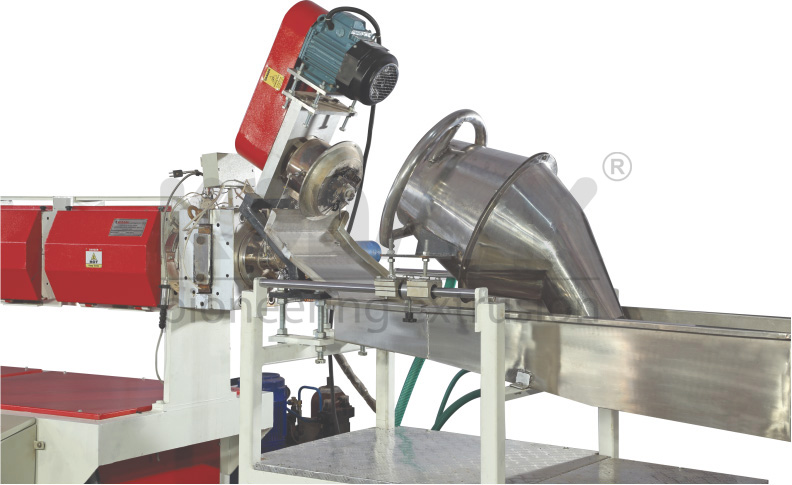

- Water ring die face cutter system
- Stainless steel made water ring drum & granules cyclone system
- Water & granules separation at vertical cyclone system
- Water collection tank made of stainless steel
- High density band heaters
- SSR based all heating zones
- Single point synchronization of whole line with AC motors and AC invertor drives
- Agglomerator
- Scrap Grinder
- Simple Mixer
| Model | KRP-D/90 | KRP-DV/90 |
| Material To Be Processed | HM, HDPE, LDPE, LLDPE | HM, HDPE, LDPE, LLDPE |
| Extruder Type | Non Vented Extruder | Vented Extruder |
| Screw Dia | 90 mm | 90 mm |
| Barrel Type | Smooth Feed | Smooth Feed, Vented |
| Maximum Output | 150 Kg/Hr | 150 Kg/Hr |
| Machine Connected Load | 67 KW (89 HP) | 86 KW (115 HP) |
| Dimensions ( L x W x H ) Apprx |
20 x 5 x 7 Feet | 30 x 5 x 8 Feet |
*Customized Mother Baby Type Recycling Lines are also available as per customer requirement.
*All above specifications are just for an idea and subject to change arising out of continuous product change and improvement.
